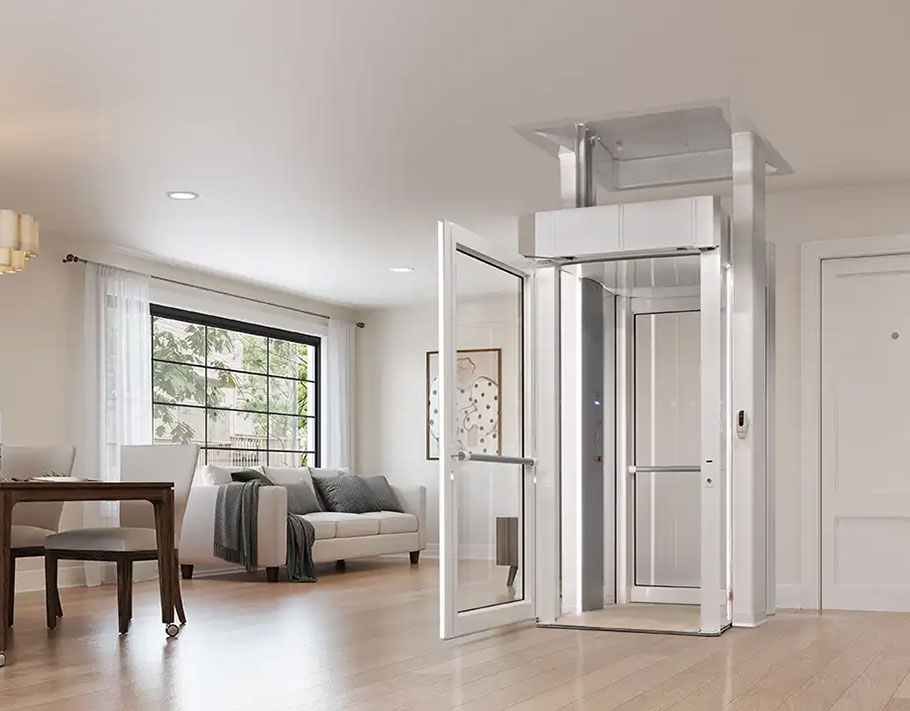

No shaft, no-pit and a larger cabin

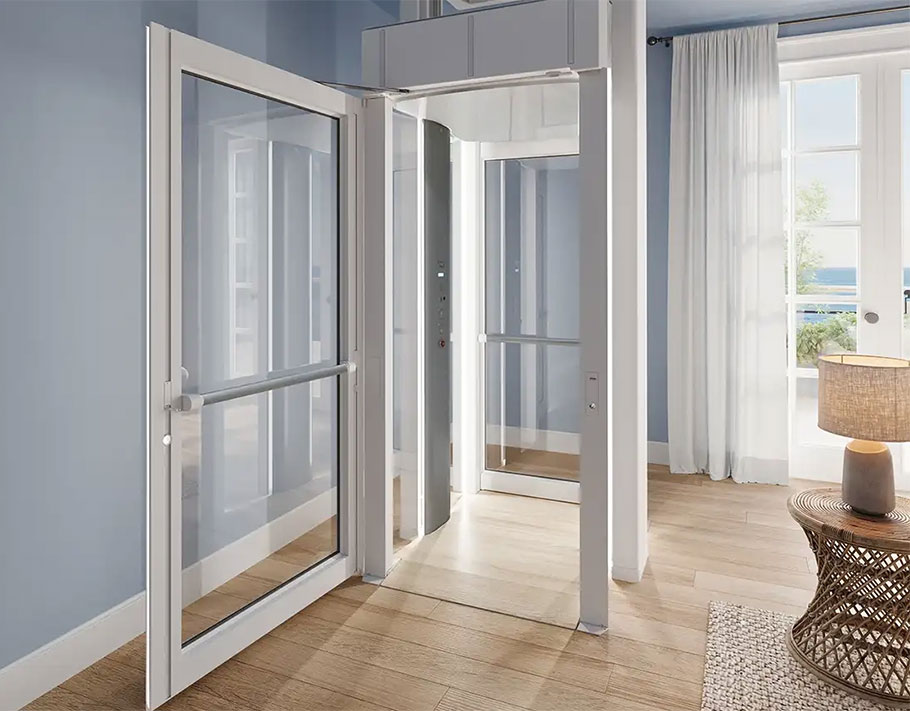

The Savaria Luma L, available through Garaventa Lift, features a larger cabin than our standard Luma lift, making it well-suited for use with many styles of mobility devices. If you’re looking to skip the stairs, this two-stop personal home lift features luxury details such as automatic ambient lighting, fully enclosed acrylic cabin and hidden cables.
The shaftless, no-pit design makes the Luma lift an easy installation of only 1 to 2 days and ideal for installation in an existing home.
Features of LUMA L Lift:
- Spacious cabin:Accommodates many walkers, rollators and slim-line wheelchairs, subject to fit and weight checks
- Wider entrance: A 32½-inch clear door opening
- Flexible placement: Self-supporting rails require no supporting wall
- Comfortable surroundings: Cabin ventilation and automatic lighting
- Access options: Optional second door for straight-through entry and exit
Why choose Luma L through Garaventa Lift?

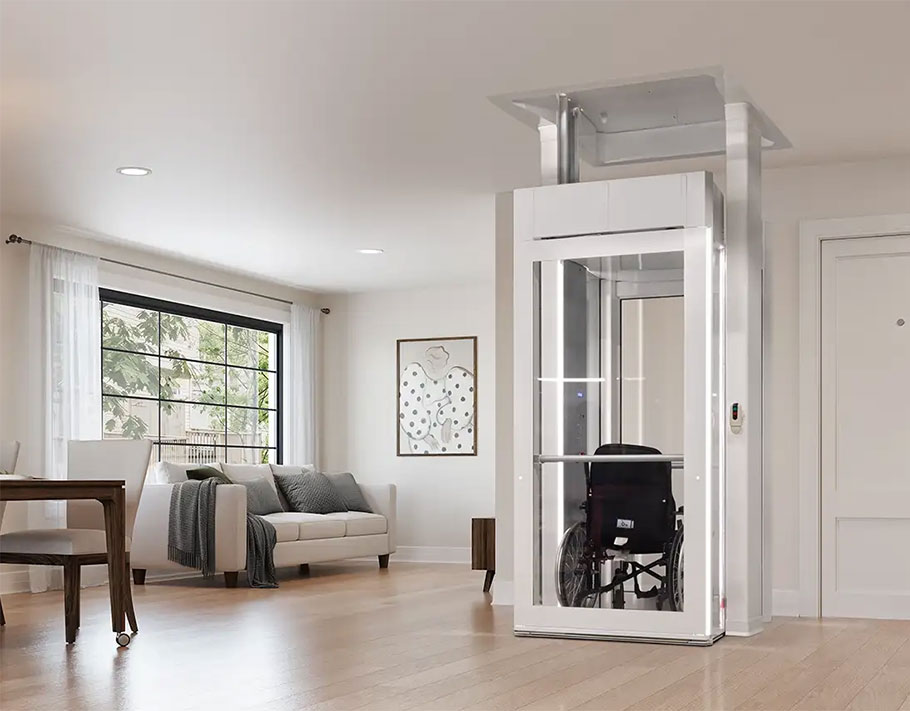

More space for your everyday mobility
Manufactured by Savaria and available through Garaventa Lift, the Luma L features a wider 32½-inch clear door opening and a spacious 31½-by-47¼-inch cabin. It accommodates mobility devices such as walkers, rollators and slim-line wheelchairs.*
A sloped threshold makes entry easier and helps reduce tripping hazards. With a footprint of approximately 46 by 52 inches, Luma L offers flexible placement while providing additional cabin space.
*Check the weight and dimensions of your mobility device to ensure a suitable fit.
Thoughtful design, everyday comfort
Luma L combines practical accessibility with a finish that complements your home. Its reliable, quiet winding drum drive provides straightforward operation, while clear acrylic panels, recessed lighting and a white powder-coated finish create a bright, open cabin.
Whether you use a mobility device or simply prefer extra room, Luma L offers a comfortable way to move between floors.
Shaftless, no-pit design

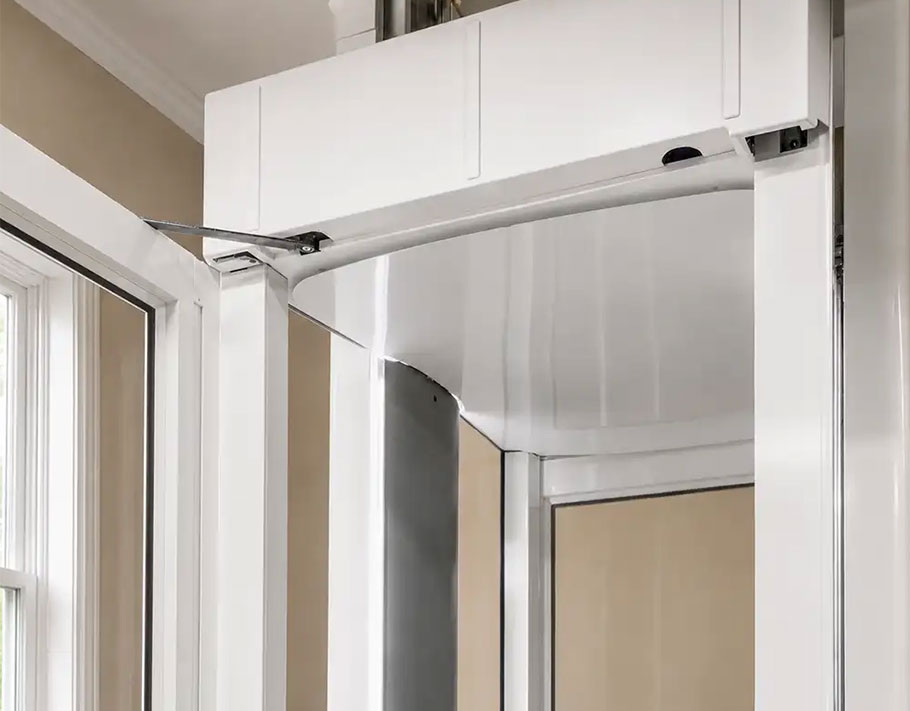

Adding a lift to your existing home has never been easier with the Luma lift. With its self-supporting rail system, the Luma lift travels through a simple floor cut-out and requires no pit below the lift. There’s no hoistway needed, and most installations take only 1 day to complete.
Reliable winding drum technology
Known for long-term reliability, the winding drum drive operates quietly with a smooth start and stop. You won’t see cables like some other through-floor lifts and everything is tucked away. The lift is battery powered with automatic charging using standard household power. During a power outage, the Luma lift should provide about 5 up and down trips.
Self-supporting for flexible placement
The Luma lift has a self-supporting structure, eliminating the need for a support wall, and giving you flexibility for placement in the home. Construction preparation includes creating a floor cut-out with reinforcement, along with providing a nearby power outlet.
Designed with safety in mind
The Luma lift includes many safety features including obstacle sensors to stop the lift in either direction if it meets an obstruction. An overspeed arrestor ensures the lift never exceeds the appropriate speed. The fully enclosed cab keeps you safe while travelling, and the interlock system keeps the door locked unless you are safely at a landing.

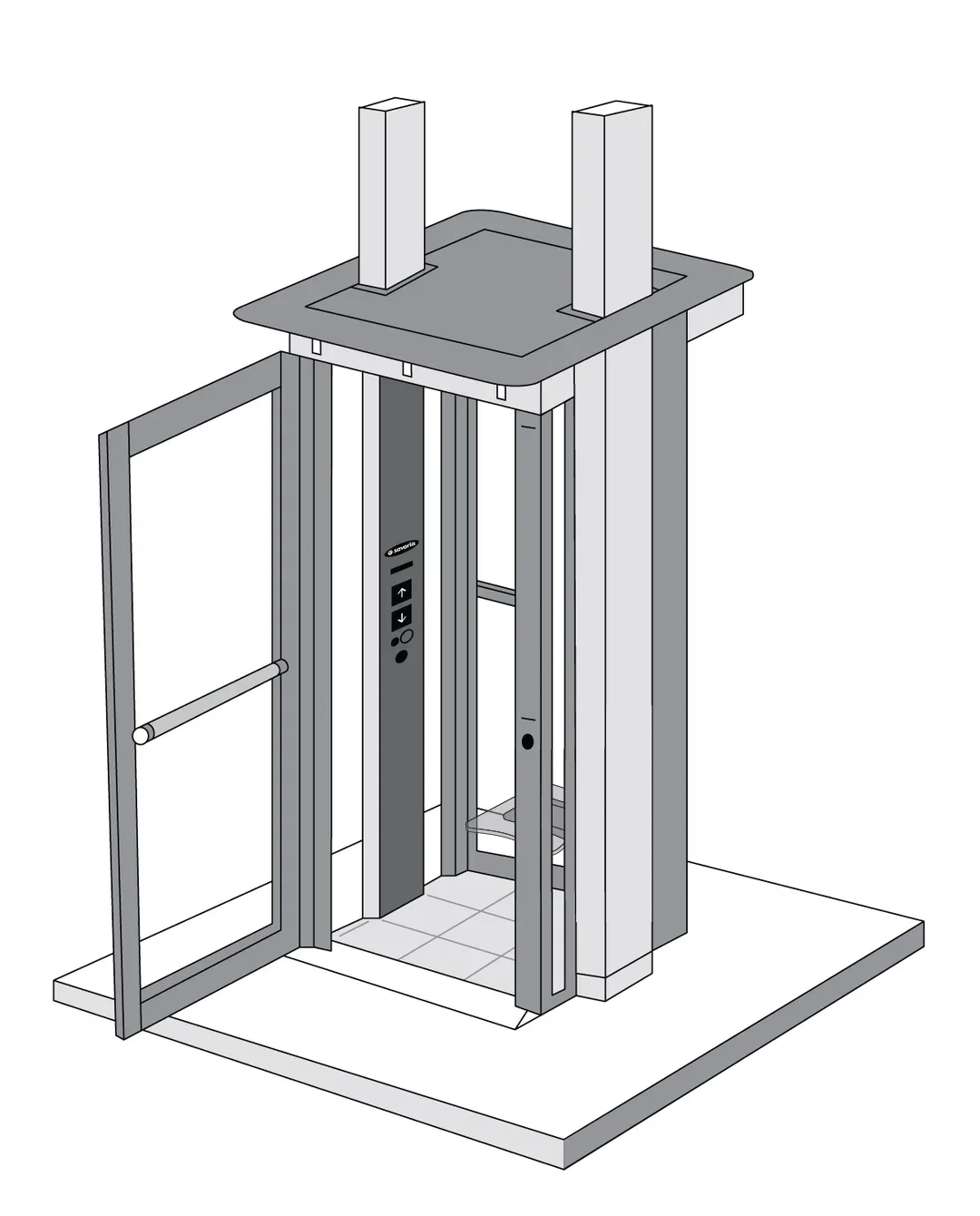

Luma L Lift Features
Hover over the blue dots to explore components
The cabin features a ventilation fan to provide air flow and comfort.
The cabin features a ventilation fan to provide air flow and comfort.

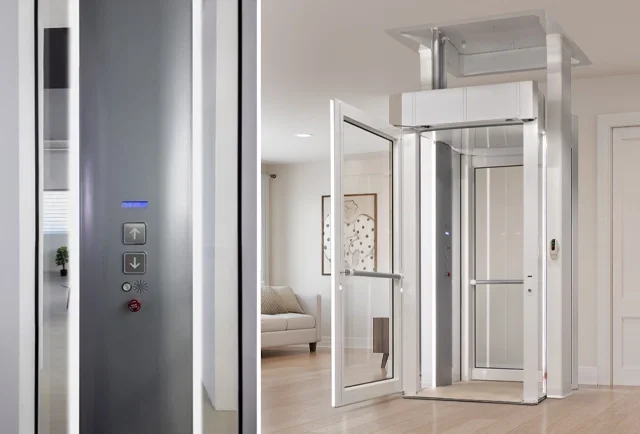

Recessed LED lighting and illuminated operating buttons provide good visibility for use at night as well as an aesthetically pleasing appearance.

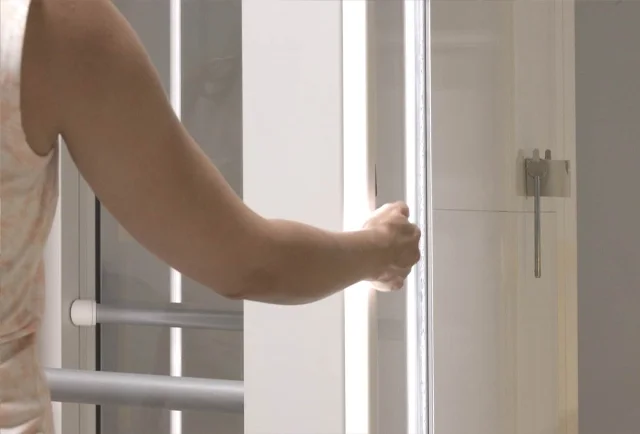

The full clear acrylic door includes a full width handrail for support.
You will find an LCD display panel inside the cabin to alert the user to any faults such as “door open”.

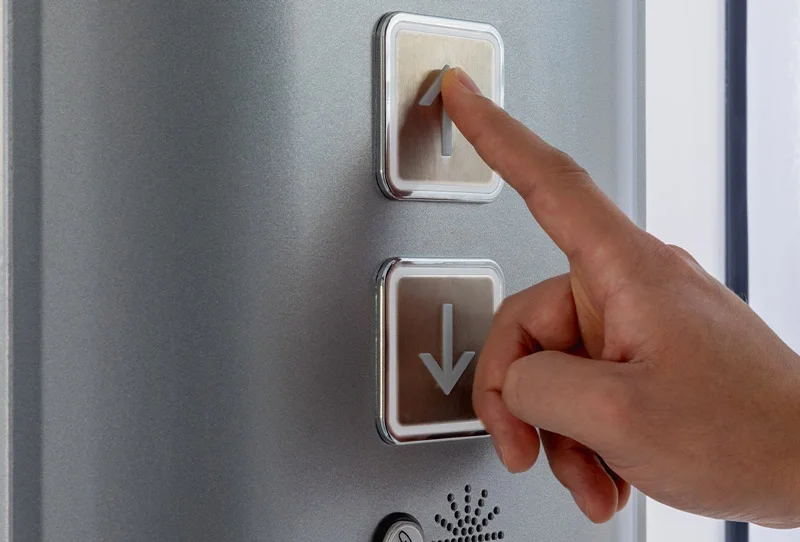

Large, illuminated up and down buttons inside the cabin work on constant pressure, also known as "push-to-run”.

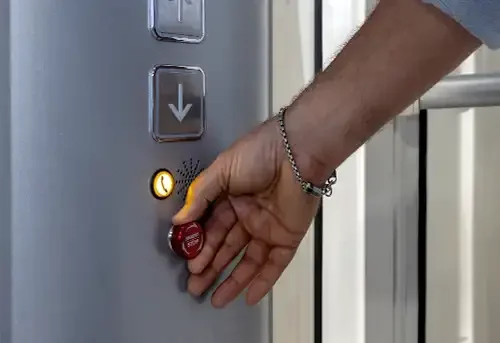

An emergency stop button also gives the user full control.

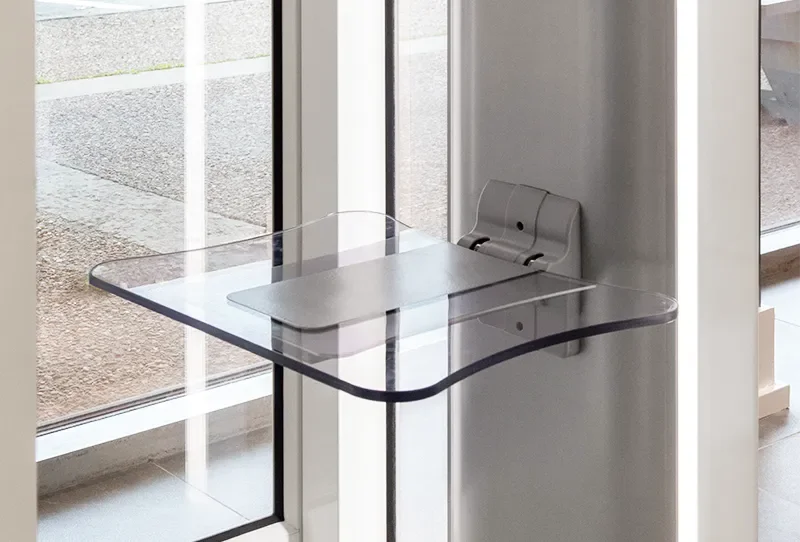

An optional seat that folds away neatly when not in use.

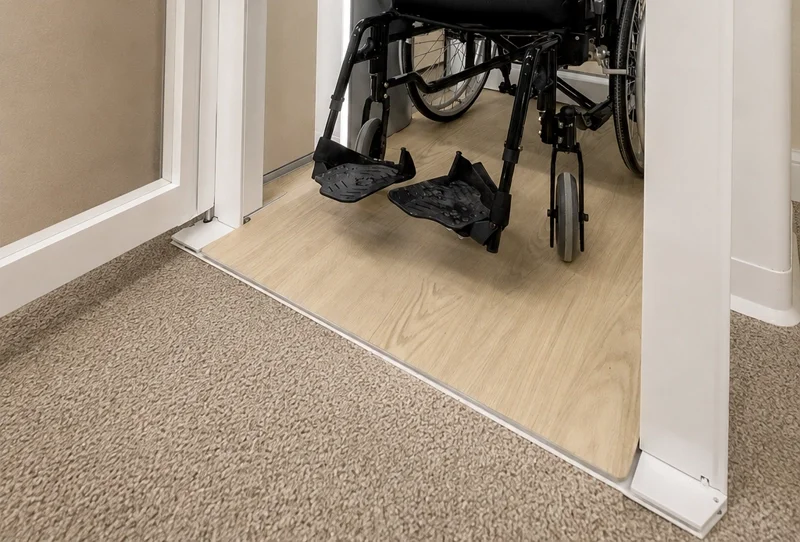

The Luma lift is finished in white powder coat paint, with silver-gray accent panel inside the cab and woodgrain style non-skid floor covering.
Two radio-frequency (RF) remote controls are also included so you can summon the lift when you are on the second or first level without getting into the cabin.
Two radio-frequency (RF) remote controls are also included so you can summon the lift when you are on the second or first level without getting into the cabin.

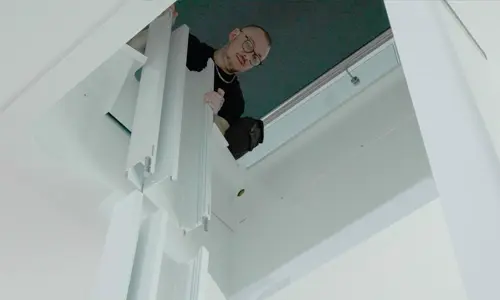

Installs in 1-2 days
The Luma L lift is delivered to your local dealer semi-assembled, along with a ceiling/floor trim liner. This makes for fast installation of often only 1 day. Prior to installation, your dealer or local contractor completes the site preparation work including cutting the ceiling/floor with reinforcement as needed, and providing a standard power outlet, usually in the floor cut-out area.
LUMA L Specifications
| Applications: | Residential, indoors | ||
| Motor: | 24 VDC, 3 hp (2.1 kW) gear type | ||
| Standard capacity: | 500 lb (227 kg) | ||
| Maximum travel distance: | 165 ¼" (4200 mm) with 2 stops | ||
| Cabin size: | 31 ½"W x 47 ¼"L x 78 ¾ H (800 mm x 1200 mm x 2000 mm)* | ||
| Floor cutout: | 46"W x 51 ⅛"L (1300 mm x 1165 mm) | ||
| Nominal speed: | 20 ft/min (0.10 m/s) | ||
| Drive: | Winding drum | ||
| Minimum ceiling height required on second level: | 94 ½" (2400 mm), short cab: 91" (2310 mm) | ||
| Minimum ceiling height required on first level: | 82 ¾" (2100 mm), short cab: 79" (2005 mm) | ||
| Maximum distance from lower level floor to top level ceiling: | 260" (6600 mm), Short cab: 256" (6505 mm) | ||
| Power supply required: | 110 - 240 VAC, Single phase, 5A | ||

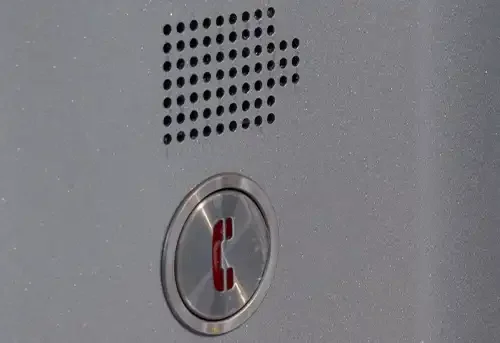

| One Touch Alert: | Standard. Using an owner-supplied, pre-paid nano sim card.Learn more | ||
| Savaria Link: | Optional.Learn More | ||
| Warranty: | A 36-month warranty against defective parts is included through your local dealer.** | ||
| Entry/exit configurations available: |   |
*An optional short cab is available with height. of 75" (1905 mm)
**Please note the full details of the Savaria warranty, including the requirement for regular maintenance.
